At present, E-TOUCH has mature solutions in 6 major categories of water floating applications,including marine navigation buoys,mooring floating buoys,floating barriers,dredging pipeline floaters,floating pontoon docks,waterway warning floats, etc. E-TOUCH will keep attention on research,pursue innovation,make unremitting efforts to become the most large-scale,modern and professional enterprise in the world.
Features: Robust construction Excellent buoyancy &stability High resistance to corrosion High visibility colors are per IALA recommendations Lightweight for easy deployment&service Abrasion resistance to water,oil,chemical,sunlight and abrasive surface
PRODUCT DESCRIPTION
SPECIFICATION SHEET
SPECIFICATION FOR POLYURETHANE NAVIGATION BUOY
SPECIFICATION FOR GFRP NAVUGATION BUOY
SPECIFICATION FOR STEEL NAVIGATION BUOY
INTRODUCTION
TypeHNF0.8HNF1.2HNF1.5HNF1.8HNF2.4HNF3.0
Body Diameter(mm)80012001500180024003000
Overall Height(mm)160022503900550074004850
Freenoard(mm)4004006007001000600
Focal Plane Height(mm)109516802660317545753050
Draft(mm)6006001200250030001300
Reserved Buoyancy(kg)2004501000178045004200


TypeHBF0.6HBF0.8HBF1.2HBF1.5HBF1.8HBF2.4
Body Diameter(mm)6008001200150018002400
Overall Height(mm)240016002250390055007400
Freenoard(mm)4204004006007001000
Focal Plane Height(mm)152010951680266031754575
Draft(mm)800600600120025003000
Reserved Buoyancy(kg)120200450100017804500


TypeBody Diameter
(mm)		Height
(mm)		Lantern Support
Height(mm)		Local Height
(mm)		LanternDraft
(mm)		Water Depth
(m)
HF1.5-D11500530018002600LED15511503.5-15
HF1.8-D11800524023502900LED15521006-15
HF2.4-D12400778030404150LED155383013-40
HF3.0-D13000798034504600LED155348013-40
HF1.5-D21500320412701620LED1551100<2
HF1.8-D21800427023402940LED1551330<10
HF2.4-D22400570030403980LED1551720<30


ItemModelDiameter(mm)Height(mm)thickness(mm)Buoyance(Kg)
NAVUGATION BUOYFB700Z7009006100
FB700HZ7001100680
FB800P80014008250
FB1400Z140014008680
FB1200P1200160010500
FB1500P1500180010900
FB1800P18001800101400

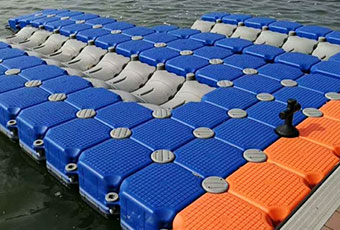

ABUIABACGAAg_66XvAYo7fWY6wQw1AI45gE


This product adopts HMWHDPE environmental protection material,the whole cube is formed in seam-less, no water seepage and water storage problems,which also adds anti-ultraviolet material has enough flexible and hardness,can withstand environmental changes and low temperature.

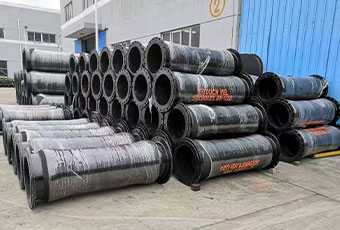

ABUIABACGAAgiK_XvAYo4OX3jAMw1AI45gE


Rubber hoses are available for a wide range of applications. Custom built they will   serve as flexible elements for steel pipe line, as jet hoses at drag arms, as connection hoses between cutter   dredgers and discharge lines, as compensators for vibration control, and etc.

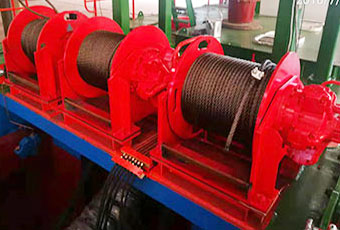

ABUIABACGAAgk6_XvAYo1MOcITDUAjjmAQ

Marine hydraulic winch also known as Marine hydraulic hoist, by the motor (positive and negative rotation) to turn the winch, with the oil pump as the driving force, through the hydraulic motor or hydraulic cylinder transmission of power winch.
