E-TOUCH Y series winch consists of various valve blocks (high-pressure shuttle valves with one-way or two-way balancing valves hydraulic motors, multi-plate hydraulic brakes), planetary reducers, drum, and racks.The user only needs t o configure the pump station and the control valve.Since the not winch has its own valve block, it only simplifies the hydraulic system, but also improves the reliability of the transmission.The YS type hydraulic winch has stable operation, low noise, high work efficiency, low energy consumption, compact size, beautifu1 appearance and good economy in lifting and lowering work.It ha s been widely used in various lifting and traction equipment such a s engineering drilling rigs, truck cranes, ship ports, oilfield drilling and mining, coa l mines, engineering machinery and So on.

Features: 1.SLEWING SYSTEM:Continuous rotation with double roller and ball guide tumtable and motoreducer, designed for intensive use. 2. STAND-UPCONTROLSTATION :The position of safety allows the operator complete control when executing specific manoeuvres and lifting operations, the ergonomic positioning of levers delivers ease of use and comfortable operation. 3.RADIO REMOTE CONTROLS:Radio remote controls of digital generation to have an absolute operational control of the crane and able to communicate with the operator. 4.WINCHES:Cable-operated lifting device equipped with an exclusive, patented mechanical, torque and end stop limiter system which avoids the risks resulting from direct and indirect overload applied to the winch itself. Anti-revolving cabl and cable guide pulley to make easy the aligned winding of the cable on the winch drum 5. DOUBLE RACK AND PINION SYSTEM:The base with a double rack makes it possible to double the slewing torque, without increasing slewing pressure 6.FLEXIBLE PIPES FROM CONNECTING PLATE: A more versatile installation: the length of the pipes can be adapted to the customer's needs. 7.EASY TO INSTALL:Distributor with levers and controls fixed on a detachable console for easy installation. 8.ROTATION CYLINDER PIPING:Pipes positioned underneath the rotation cylinders to avoid interference with load handling.

PRODUCT DESCRIPTION

SPECIFICATION SHEET

YS-0.8

Free Fall Function Hydraulic Winch

JP040 Hydurical Winch

HZ3.0 Rotary Reducer

INTRODUCTION

Wire rope layer

Lifting pressure

16Mpa

Line pull

9.5

Max.pump flow

50L/min

Rope speed with 45L/min

m/min

Motor displacement

160cc/r

Rope capacity

Ratio

1:05:08

A is for lifting

M18×1.5

P is for controlling

M10×1

Rope diameter

8mm

B is for flling

Weight

47.5kg

Wire rope layer	layer	1	2	3
Line pull	KN	40	37	30
Rope speed	m/min	10-40
Rope capacity	m	100
Motor displacement	cc/r	500
Lifting pressure	Mpa	25
Motor flow	m/min	140
Rope diameter	mm	12
Due to mechanical resistance factors,a load of 60 kg is required to achieve free fall function

Calibration force(calibration)

39.2(3t)

Rated load

wire rope layers

Load

40(4t)

33.3(3.4t)

28.2(3t)

26.4(2.7t)

Calibration working speed

m/min

6.5

Hydraulic system working flow

Mpa

Speed ratio

L/min

Capacity of capacity

Wire rope layers

layer

Wire rope diameter

Φ8

Weight

Type	HZ3.0
Output torque	Nm	3000	Hydraulic	SMS245
Output speed	rpm	55	System flow	L/min	75
Transmission ratio	i	6	System pressure	Mpa	17
Type	HZ3.0-Z
Output torque	Nm	3000	Hydraulic motor	SMS245
Output speed	rpm	55	System flow	L/min	75
Transmission ratio	i	6	System pressure	Mpa	17
Open pressure	Mpa	3	Brake torque	Nm	4000

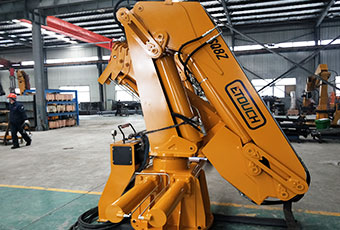

E-TOUCH marine crane is outstanding in comparison with outdated stiff booms and derricks. The knuckle boom principle creates exceptional freedom of movement, while maintaining a maximum lifting capacity, precise load handling, extra capacity at reduced reach and an optional total overload

protection.To top it off, the crane folds efficiently into a compact storage space.

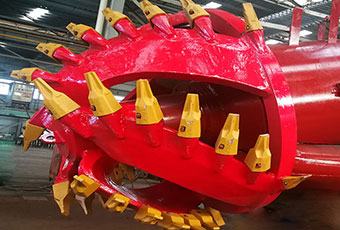

E-TOUCH developing cutterheads for decades based on its practical experience with numerous types of soils and dredging vessels. The company’s modern cutter technology is driven by its fundamental knowledge of excavation, slurry creation and wear resistance, aided by 3D solid modelling and powerful computer analysis. The combination of these factors is the unique basis for offering the best cutterheads in the world.

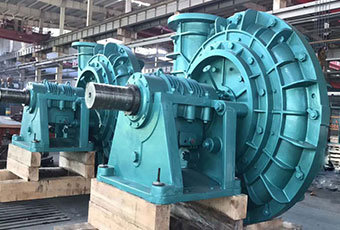

WN series of dredging pump,which is designed and researched by our company--E-Touch is one new type dredging pump,making full use of advanced CAD software,aiming to China’s river,lake and sea situation,they are in great need to dredge and fill hydraulically.
