E-TOUCH offers a range of cranes that have been specifically designed with full marine properties, and a range of cranes that are adapted to work in the marine environment for a wide spectrum of uses.
E-TOUCH marine crane is outstanding in comparison with outdated stiff booms and derricks. The knuckle boom principle creates exceptional freedom of movement, while maintaining a maximum lifting capacity, precise load handling, extra capacity at reduced reach and an optional total overload
protection.To top it off, the crane folds efficiently into a compact storage space.
Features:
1.SLEWING SYSTEM:Continuous rotation with double roller and ball guide tumtable and motoreducer, designed for intensive use.
2. STAND-UPCONTROLSTATION :The position of safety allows the operator complete control when executing specific manoeuvres and lifting operations, the ergonomic positioning of levers delivers ease of use and comfortable operation.
3.RADIO REMOTE CONTROLS:Radio remote controls of digital generation to have an absolute operational control of the crane and able to communicate with the operator.
4.WINCHES:Cable-operated lifting device equipped with an exclusive, patented mechanical, torque and end stop limiter system which avoids the risks resulting from direct and indirect overload applied to the winch itself. Anti-revolving cabl and cable guide pulley to make easy the aligned winding of the cable on the winch drum
5. DOUBLE RACK AND PINION SYSTEM:The base with a double rack makes it possible to double the slewing torque, without increasing slewing pressure
6.FLEXIBLE PIPES FROM CONNECTING PLATE: A more versatile installation: the length of the pipes can be adapted to the customer's needs.
7.EASY TO INSTALL:Distributor with levers and controls fixed on a detachable console for easy installation.
8.ROTATION CYLINDER PIPING:Pipes positioned underneath the rotation cylinders to avoid interference with load handling.
PRODUCT DESCRIPTION
SPECIFICATION SHEET
F400Z-4CJ/SQ3.2ZA2T/SQ5ZA2T/SQ8ZA3T
SQSA2T/SQ3.2SQ2T/SQ5SA2T/SQ6.3SA2T
SQ6.3SA3T/SQ16SA3T
INTRODUCTION
| Item | Unit | F400Z-4CJ | SQ3.2ZA2T | SQ5ZA2T | SQ8ZA2T | ||||||||
| Max Lifting Capacity | Kg | 2000 | 3200 | 5000 | 8000 | ||||||||
| Max Lifting Height | m | 13.2 | 9.3 | 9.8 | 11.5 | ||||||||
| Max Lifting Moment | ton.m | 40 | 6.8 | 10.5 | 16 | ||||||||
| Recommend Power | KW | 37 | 15 | 18.5 | 25 | ||||||||
| Rotation Speed | r/min | 1.5 | 1.3 | 1.2 | 1.5 | ||||||||
| Hydraulic System Flow | L/Min | 55 | 25 | 25 | 40 | ||||||||
| Operation Mode | Integrated Stading Slewing | ||||||||||||
| Hydraulic System Pressure | MPa | 30 | 22 | 28 | 28 | ||||||||
| Oil Tank Capaticy | L | 260 | 6.0 | 90 | 160 | ||||||||
| Self Weight | Kg | 4555 | 950 | 1600 | 2550 | ||||||||
| Rotation Angle | ° | 360° Continuous | |||||||||||
| Maximum permissible obliquity (horizontal/lengthways) | ° | 5°/2° | 5°/2° | 5°/2° | 5°/2° | ||||||||
| Item | Unit | SQ2SA2T | SQ3.2SA2T | SQ5SA2T | SQ6.3SA2T | ||||||||
| Max Lifting Capacity | Kg | 2000 | 3200 | 5000 | 6300 | ||||||||
| Max Lifting Moment | ton.m | 4.2 | 6.8 | 12.5 | 17 | ||||||||
| Recommend Power | KW | 10 | 14 | 16 | 25 | ||||||||
| Hydraulic System Flow | L/Min | 25 | 25 | 32 | 40 | ||||||||
| Hydraulic System Pressure | MPa | 16 | 20 | 20 | 20 | ||||||||
| Oil Tank Capaticy | L | 60 | 60 | 100 | 100 | ||||||||
| Self Weight | Kg | 950 | 1050 | 1750 | 1950 | ||||||||
| Rotation Angle | ° | 360° Continuous | |||||||||||
| Item | Unit | SQ6.3SA3T | SQ16SA3T | ||||||
| Max Lifting Capacity | Kg | 6300 | 16000 | ||||||
| Max Lifting Height | m | 12.2 | 15.5 | ||||||
| Max Lifting Moment | ton.m | 16 | 50 | ||||||
| Recommend Power | KW | 25 | 40 | ||||||
| Rotation Speed | r/min | 1.2 | 1.2 | ||||||
| Hydraulic System Flow | L/Min | 40 | 63 | ||||||
| Operation Mode | Integrated Stading Slewing | ||||||||
| Hydraulic System Pressure | MPa | 20 | 25 | ||||||
| Oil Tank Capaticy | L | 100 | 260 | ||||||
| Self Weight | Kg | 2180 | 6350 | ||||||
| Rotation Angle | ° | 360° Continuous | |||||||
| Maximum permissible obliquity (horizontal/lengthways) | ° | 5°/2° | 5°/2° | ||||||
|
|

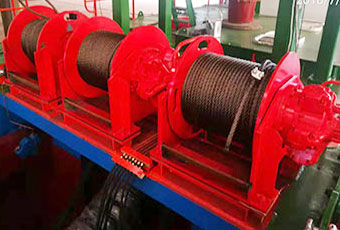

Marine hydraulic winch also known as Marine hydraulic hoist, by the motor (positive and negative rotation) to turn the winch, with the oil pump as the driving force, through the hydraulic motor or hydraulic cylinder transmission of power winch.

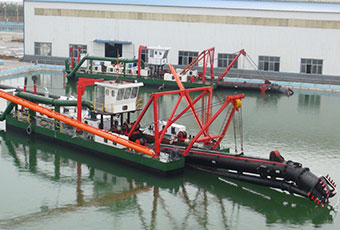

| Cutter Suction Dredger ETG 450 | |||
| Production (m3/h) | 3000 | ||
| Dredging depth (m) | 12 | ||
| Pipe diameter (mm) | 450 | ||
| cutter Power | 125 | ||
| Total installed power (kw) | 1120 | ||
| Total Weight (Ton) | 120 | ||

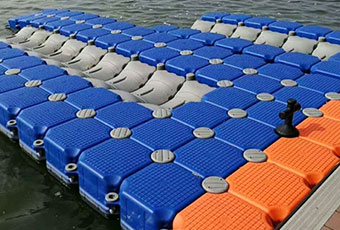

This product adopts HMWHDPE environmental protection material,the whole cube is formed in seam-less, no water seepage and water storage problems,which also adds anti-ultraviolet material has enough flexible and hardness,can withstand environmental changes and low temperature.
