E-touch butt welding equipment is suitable for ditches or field operation of pipes and fittings of PP, PB, PE, PVDF and other thermoplastic materials. With strong technical force, senior engineer r & D team, using the latest technology, in strict accordance with the German electrical industry standards manufacturing, to provide customers with quality products.
Features: 1.The raw material of the machine frame is aluminum ZL104, it's light but strong,is one of the best material of the machine. 2.The main electrical parts elements are best in china, many are imported from abroads. 3.Reovable PTFE coated heater with separate temperature control system,the temperature can be controllred to a minimum range. 4.The cutter adopts powerful motor, specal material of the blade, making the cutting effect more perfect. 5.The machine with simple structure can be operated by one person, it's suitable for use under complex conditions.
PRODUCT DESCRIPTION
SPECIFICATION SHEET
INTRODUCTION
ModelSHBD160-63SNBD200-63SNBD250-110SHBD315-160SHBD355-90SNBD450-280
Welding Range(mm)63-16063-200100-250160-31590-355280-450
Heating Plate
Temperature		270℃270℃270℃270℃270℃270℃
Heating Plate
Surface Temperature
(170~250℃)		<±5<±5<±5<±5<±5<±5
Pressure adjustment
range		0-6.3MPa0-6.3MPa0-6.3MPa0-6.3MPa0-6.3MPa0-6.3MPa
Cross-sectional area
of   the cyinder		626mm2626mm21100mm22000mm22000mm22236mm2
Operating Voltage220V ,50Hz220V ,50Hz220V ,50Hz220V ,50Hz220V ,50Hz220V ,50Hz
Heating Plate Power1.0KW1.0KW2.1KW3.1KW3.5KW5.2KW
Cutter Power0.85KW0.85KW1.36KW1.36KW1.36KW1.5KW
Hydraulic Station
Power		0.75KW0.75KW0.75KW0.75KW0.75KW1.5KW
Total Power2.6KW2.6KW4.21KW5.21KW5.61KW8.2KW
The parameters of product are subject to changes without prior notice


ModelSHBD500-315SNBD630-400SNBD800-630SHBD1000-710SHBD1200-800SNBD1600-1200
Welding Range(mm)500-315630-400800-6301000-7101200-8001600-1200
Heating Plate
Temperature		270℃270℃270℃270℃270℃270℃
Heating Plate
Surface Temperature
(170~250℃)		<±7℃<±7℃<±7℃<±7℃<±7℃<±7℃
Pressure adjustment
range		0-6.3MPa0-6.3MPa0-12MPa0-12MPa0-18MPa0-18MPa
Cross-sectional area
of   the cyinder		2306mm22306mm23179mm22512mm23297mm23870mm2
Operating Voltage380V ,50Hz380V ,50Hz380V ,50Hz380V ,50Hz380V ,50Hz380V ,50Hz
Heating Plate Power8.0KW9.2KW12.5KW21.7KW30.0KW47KW
Cutter Power1.5KW1.5KW2.2KW3.0KW4.0KW5.5KW
Hydraulic Station
Power		－－0.5KW1.1KW1.1KW1.5KW
Total Power11.0KW12.2KW17.4KW28.8KW38.1KW63.7KW
The parameters of product are subject to changes without prior notice
ABUIABACGAAg2q_XvAYohdXQwQIw1AI45gE

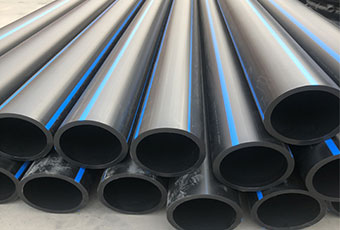

Professional production equipment and technical process.The product produced has good flexibility,high impact strength,corrosion resistance,strong shock resistance,good wear resistance and good crack resistance.



ABUIABACGAAg5q_XvAYosqCg9gIw1AI45gE

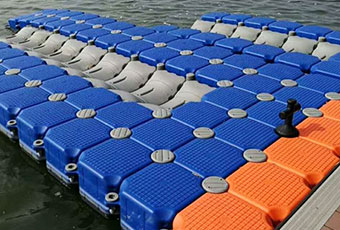

This product adopts HMWHDPE environmental protection material,the whole cube is formed in seam-less, no water seepage and water storage problems,which also adds anti-ultraviolet material has enough flexible and hardness,can withstand environmental changes and low temperature.




ABUIABACGAAg8q_XvAYopNGgqgIw1AI45gE

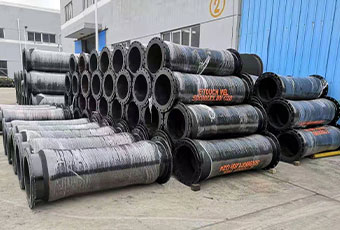

Rubber hoses are available for a wide range of applications. Custom built they will serve as flexible elements for steel pipe line, as jet hoses at drag arms, as connection hoses between cutter   dredgers and discharge lines, as compensators for vibration control, and etc.
