HDPE dredging pipes are molded by continuously extruded polyethylene through extrusion machines and designed molds. It has an excellent comprehensive performance, which contains high wear resistance, are light weight, easy to transport and install, do not require large mechanical construction, have excellent wave impact resistant and ring stiffness, have excellent tensile strength, can bear the shock of sea waves and win d, and come in customized pipe lengths according to the customer's request.
Features:
1.Raw Material:The HDPE material is non-toxic and tasteless.It belongs to green building materials and never scaling through the strict health test, which can effiectively improve the water quality.
2.Low Flow Resistance:The smooth inner wall is easy for pipeline transportation.Under the same condition,HDPE pipe's delivery capacity can be increased by 30%,as its roughness is much less than that of steel pipe and glass reinforced pipe.
3.No Leakage:HDPE Pipe is connected in the ways of butt fusion,socket fusion and electrofusion,which means the strength of joint is higher than tube itself.
4.Excellent Flexibility:HDPE pipe could be slightly bended for the large diameter products ,which will be much more convenient in the construction site.
5.Good Risistance Ability:HDPE is 4 times the wear resistance of steel pipe,which means HDPE pipe has longer service life and better ecnomical effciency.Designed 50 years' service life under rate temperature and pressure.
6.Covenient for Construction:PE pipe could be installed in a variety of trenchless ways, so it is very convenient for construction and installation
7.Lower Maintenance Cost:HDPE pipe is not only convenient to transport and install, but also greatly reduce the worker's labor intensity and improve work effiency.
PRODUCT DESCRIPTION
SPECIFICATION SHEET
INTRODUCTION
| STANDARD:ISO4427,EN12201,AS/NZS4130,DIN8074,ASTMF714,GOST18599,GB/T13663 | |||||||||||||
| NO. | ITEM | REQUIREMENTS | |||||||||||
| 1 | Elongational at break，% | ≥350 | |||||||||||
| 2 | Longitudinal reversion (100℃),% | ≤3 | |||||||||||
| 3 | Oxidation induction time (200℃) min | ≥20 | |||||||||||
| 4 | Weather resistance After the pipe has accepted the aging engergy which equal to or more than 3.5GJ/m2 | 80℃ static hydraulic strength(165h) | Non breakage and leakage | ||||||||||
| Percentage of break-elongation% | ≥350 | ||||||||||||
| Oxidation induction time(200℃) min | ≥10 | ||||||||||||
| ITEM | PRESSURE | REQUIRMENT | |||||||||||
| PE80 | PE100 | ||||||||||||
| 20℃ hydrostatic strngth (100h) | 9 | 12.4 | Non breakage and leakage | ||||||||||
| 80℃ hydrostatic strngth (165) | 4.6 | 5.5 | Non breakage and leakage | ||||||||||
| 80℃ hydrostatic strngth (1000) | 4 | 5 | Non breakage and leakage | ||||||||||
| Specifications of HDPE Dredge Pipe | |||||||||
| HDPE class | SDR26 | SDR21 | SDR17 | SDR13.6 | SDR11 | ||||
| Nominal pressure | 0.6Mpa | 0.8Mpa | 1.0Mpa | 1.25Mpa | 1.6Mpa | ||||
| Nominal outer dianeter(mm) | Thickness | ||||||||
| DN32 | - | - | - | - | 3.0 | ||||
| DN40 | - | - | - | - | 3.7 | ||||
| DN50 | - | - | - | - | 4.6 | ||||
| DN63 | - | - | - | 4.7 | 5.8 | ||||
| DN75 | - | - | 4.5 | 5.6 | 6.8 | ||||
| DN90 | - | 4.3 | 5.4 | 6.7 | 8.2 | ||||
| DN110 | 4.2 | 5.3 | 6.6 | 8.1 | 10.0 | ||||
| DN125 | 4.8 | 6.0 | 7.4 | 9.2 | 11.4 | ||||
| DN140 | 5.4 | 6.7 | 8.3 | 10.3 | 12.7 | ||||
| DN160 | 6.2 | 7.7 | 9.5 | 11.8 | 14.6 | ||||
| DN180 | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 | ||||
| DN200 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 | ||||
| DN225 | 8.6 | 10.8 | 13.4 | 16.6 | 20.5 | ||||
| DN250 | 9.6 | 11.9 | 14.8 | 18.4 | 22.7 | ||||
| DN280 | 10.7 | 13.4 | 16.6 | 20.6 | 25.4 | ||||
| DN315 | 12.1 | 15.0 | 18.7 | 23.2 | 28.6 | ||||
| DN355 | 13.6 | 16.9 | 21.1 | 26.1 | 32.2 | ||||
| DN400 | 15.3 | 19.1 | 23.7 | 29.4 | 36.3 | ||||
| DN450 | 17.2 | 21.5 | 26.7 | 33.1 | 40.9 | ||||
| DN500 | 19.1 | 23.9 | 29.7 | 36.8 | 45.5 | ||||
Note: Other parameters are by your requirements
|
|

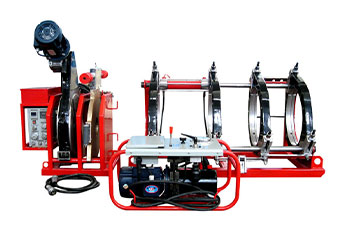

1.Lower start-up pressure making the small diameter pipe welding more reliable.
2.Welding position can transform that it is convenient for welding all kinds of pipe fittings
3.Stand alone dual channel timer can record both of heat and cooling hours,when timing is over the timer will give an alarm.
4.High precision shock proof pressure gauge with large dial is easy to read.

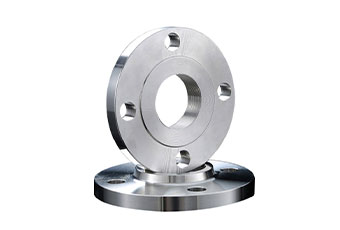

Exterior:No pits,folds,cracks,pits gouges port
Antirust:The outer surface of the flange to be evenly rust oil.
Clearly Markd:Seal all pressure machine,but also computer lettering,hand knock allowed.
Fower Hole:Flanges bore hole to be all flowers and burr.
Sealing Surface:Dense thread waterline.
Bevel Angle:31~34° light sandblasting mouth, even blunt edge.
1.Drinking water supply system
2.Gardening network and sewage treatment
3.Agricultural irrigation pipe
