ESC Protable Sand Dredger

PRODUCT INTRODUCTION

GENERAL ARRANGEMENT

SPECIFICATION

ESC Protable Sand Dredger


Engine type	Dredging depth(m)	Main engine power(kw)	Discharge pipe diameter(mm)



Weichai/ Cummins	6-8	180-350KW	200

DIMENSIONS	ECD200	ECD250	ECD300
Length overall incl.ladder	11.8 metres	16.4 metres	16.4 metres
length over pontoons	9 metres	11.5 metres	11.5 metres
Breadth	3.2 metres	4 metres	4 metres
Draft	0.60 metres	0.75 metres	0.78 metres
DREDGING EQUIPMENT
Dredging head type	Auger head	Cutter head	Cutter head
Dredging head power	15 kw	30kw	35 kw
Speed	0-60 rpm	0-35 rpm	0-35 rpm
Dredge Pump	EA 6/8	EA 8/10	EA 8/10
DREDGING PARAMETERS
Dredging depth	6-8 m	6-8 m	6-8 m
Suction pipe diameter	200mm	250mm	250mm
Discharge pipe diameter	200mm	250mm	250mm

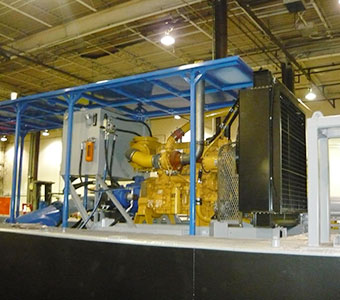

INSTALLED POWER
Engine type	Weichai/ Cummins	Weichai/ Cummins	Weichai/ Cummins
Total power	180kw	295kw	350kw

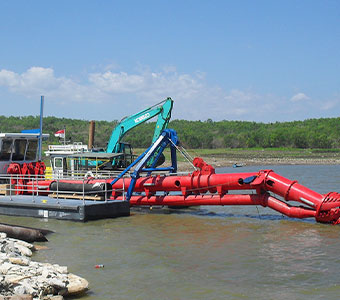

The portable small sand dredger made by E-TOUCH can be self-propelled or non self-propelled. The hull can be dismantle and box-like structure. The dismantle type can be assembly at working place easily and be transported by road, railway and container accordingly, it is very convenient to install and move in the working place. The power system of potable river sand suction dredger can be electric system or diesel engine driving system according to customers’ requirements.

Adantage:

✮High efficiency, large output and long distance of pump.

✮Very simple and fast assembly and dis-assembly, afloat or onshore, simple operation ,easy to control.

✮Good economic performance. The digging and delivery of material can be completed one time.

✮Highly efficient fuel consumption and minimum overall operational costs

✮Good access to all parts, especially the dredge pump wearing parts.

✮The dredgers can be made according to the customers’ request.

Tools: Special tools are supplied for connecting and disconnecting pontoons and the cutter ladder,and for maintenance of the dredge pump and diesel engine. Other features: ⊙standard design,allowing for short delivery times and competitive pricing ⊙spare parts available from stock ⊙fresh-water engine cooling system ⊙dredge pump driven through integrated bearing block,clutch and reduction gearbox ⊙cutter drive accepts temporary overload,resulting in high maximum cutter power ⊙reliable hydraulic system ⊙completely assembled and fully tested afloat before dllivery ⊙dismountable and transportable by road,rail orsea ⊙easy and fast assembly and dismantling ⊙ready for operation on arrival at site ⊙hydraulic ram for ladder hoisting ⊙white iron-wear parts for the dredge pump ⊙one-man operation ⊙wide range of services and optional equipment available(including work boats,boosters and pipelines). Optional extra's: ⊙non-return valve ⊙increased discharge pipeline diameter ⊙incressed dredging depth ⊙life-cyde support packages (includiing training.technical support etc) ⊙optional packages: comfort (including air conditioning); HSE (health, safety and environment); nautical; and inventory plus.

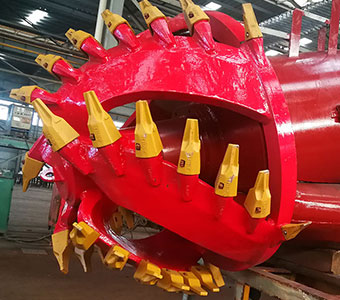

Cutter head

Different type of Cutter Head and Cutter teeth is suitable for different soil type and working conditions. E-TOUCH provides series of Cutter Head for selection.This type of pump can meet dredging ship’s requirements completely and each set of dredging pump has passed the inspection issued by CCS.

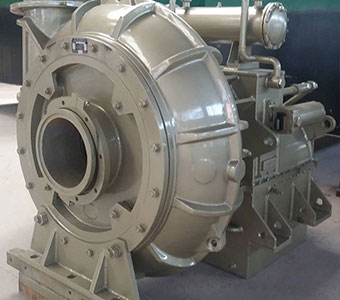

Dredge pump

WN series of dredging pump,which is designed and researched by our company--E-Touch is one new type dredging pump,This series of dredging pump has characteristic features:easy installation,long life service,high efficiency,reliable bearing lining and good economical efficiency.

Powerful winch

Because of its special operation mode, the winch has become one of the most critical parts in the operation of cutter suction dredger. E-TOUCH winches are popular in the international market for their high reliability, long service life and durability.

MAIN FEATURE

River dredging is necessary to keep warterways open for inland transport ＆to prevent flooding.

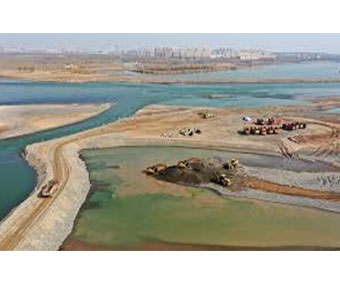

Maintenance dredging – removal of sediments from existing riverbeds, channels, etc. in order to maintain an appropriate water depth. As a result, gateways are kept open for safe navigation and flood control.

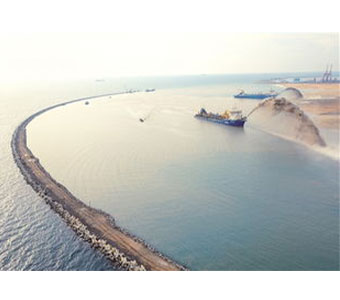

Regular maintenance dredging is required to make sure marinas and harbors provide safe navigation and access at all times, and to avoid disruption of waterway traffic.

APPLICATIONS
