Dual Cutter Suction Dredger ETG 650D
PRODUCT INTRODUCTION
GENERAL ARRANGEMENT
SPECIFICATION
Dual Cutter Suction Dredger ETG 650D
Production(m3/h)Dredging depth(m)Main engine power(kw)Pipe diameter(mm)
7000251825650


Dimensions Ladder Winch
Length overall (ladder raised)58.5mRetracting force270KN
Length over pontoons,approx.49mExtending force300KN
Breadth10.5mSwing winches
Depth2.8mLine pull,fiest layer270KN
Main pontoon20mMaximum line speed,approx.15m/min
Mean draught with full bunkers,approx1.65mWire diameter30mm
Maximum standard dredging depth20mDrum diameter
Suction pipe diameter650mm

Discharge pipe diameter650mmSpuds
Dredge pumpLength,approx.25m
Type121-25-60Diameter850mm
Maximum power at shaft1644kwWeight,approx.12000kg
Engine installationSpud-hoisting rams
Diesel engine                                                                                  CATERPILLARForce800KN
Continous engine power 1825KWRam stroke3000mm
Specific fuel consumption200g.kw/h

Electrical installationSwing width with 35° swing each side
Voltage12v /220vAt maximum dredging depth43m
Battery capacity192AhAt minimum dredging depth52m
CutterDeck crane
Type HC-2200-700Lifting power5000kg
Power at shaft 700KWOutreach4000mm
Diameter2200mm

Maximum speed,approx



Cutter Suction Dredger  is  self-propelled or  non  self-propelled,  portable  cutter  suction  dredger. Hull  can  be  dismantled  and  re-assemble easily with box structure . equipped with horizontal shifting devices, cutter ladder lifting devices, spud devices,deck crane and so on. Widely used in sand-excavating,river dredging, desilting,reclamation for channels and land,port construction, etc.
Adantage: ▲Reliable and Eficient ▲The key component like engine, pump and hydraulic system are adopted the international brand+Tested in pool before delivery ▲Quality testing for each dredger before delivery to ensure all function working properly. Services -experienced enaineers to quide installing and trainina local workers.24/7 technical support standby. Free spare parts in the first year, low cost for services. ▲Dismantled and easy transport.
Tools: Special tools are supplied for connecting and disconnecting pontoons and the cutter ladder,and for maintenance of the dredge pump and diesel engine. Other features: ⊙standard design,allowing for short delivery times and competitive pricing ⊙spare parts available from stock ⊙fresh-water engine cooling system ⊙dredge pump driven through integrated bearing block,clutch and reduction gearbox ⊙cutter drive accepts temporary overload,resulting in high maximum cutter power ⊙reliable hydraulic system ⊙completely assembled and fully tested afloat before dllivery ⊙dismountable and transportable by road,rail orsea ⊙easy and fast assembly and dismantling ⊙ready for operation on arrival at site ⊙hydraulic ram for ladder hoisting ⊙white iron-wear parts for the dredge pump ⊙one-man operation ⊙wide range of services and optional equipment available(including work boats,boosters and pipelines). Optional extra's: ⊙non-return valve ⊙increased discharge pipeline diameter ⊙incressed dredging depth ⊙life-cyde support packages (includiing training.technical support etc) ⊙optional packages: comfort (including air conditioning); HSE (health, safety and environment); nautical; and inventory plus.
Cutter head
ABUIABACGAAg1YeXvAYos-itsgUw1AI4rAI


Different type of Cutter Head and Cutter teeth is suitable for different soil type and working conditions.     E-TOUCH provides series of Cutter Head for selection.This type of pump can meet dredging ship’s requirements completely and each set of dredging pump has passed the inspection issued by CCS..


Dredge pump
ABUIABACGAAg44eXvAYomLmS4gcw1AI4rAI

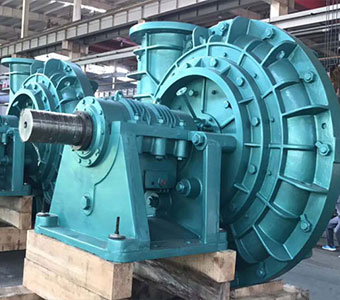

WN series of dredging pump,which is designed and researched by our company--E-Touch is one new type dredging pump,This series of dredging pump has characteristic features:easy installation,long life service,high efficiency,reliable bearing lining and good economical efficiency.

Powerful engine
ABUIABACGAAg8YeXvAYox6-xjwMw1AI4rAI

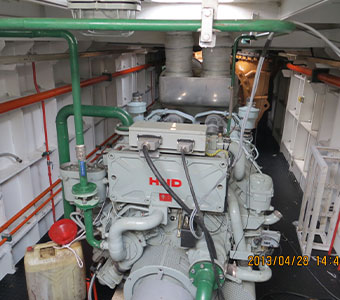

Dredging plays a vital role in the marine industry, allowing cargo and passenger ships to travel through unobstructed waterways. It’s a tough job, and dredging vessels need engines that deliver reliable performance, high fuel efficiency and best-in-class powe.

MAIN FEATURE
ABUIABACGAAgg4iXvAYo0OPYowYw1AI4rAI

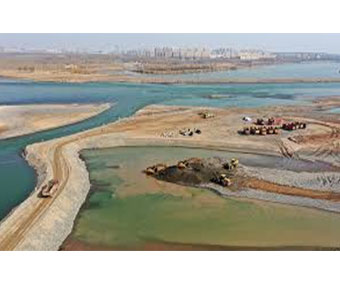

River dredging is necessary to keep warterways open for inland transport ＆to prevent flooding.


ABUIABACGAAglIiXvAYor5n_4QQw1AI4rAI

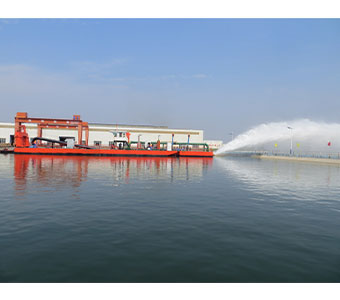

Maintenance dredging –   removal of sediments from existing riverbeds, channels, etc. in order to maintain an appropriate water depth. As a result, gateways are kept open for safe navigation and flood control..

ABUIABACGAAgs4iXvAYo-dyP3AQw1AI4rAI


Regular maintenance dredging is required to make sure marinas and harbors provide safe navigation and access at all times, and to avoid disruption of waterway traffic..
