WN series of dredging pump,which is designed and researched by our company--E-Touch is one new type dredging pump,making full use of advanced CAD software,aiming to China’s river,lake and sea situation,they are in great need to dredge and fill hydraulically.
This series of dredging pump has characteristic features:easy installation,long life service,high efficiency,reliable bearing lining and good economical efficiency...This type of pump can meet dredging ship’s requirements completely and each set of dredging pump has passed the inspection issued by CCS.
Features:
1.The whole construction is suitable for dredging ship.
2.Easy disassembly and installation,convenient maintenance.
3.Dredging performance is excellent.
4.Strong through-put capacity,wide application.
5.The curve of performance decreases sharply.
6.Excellent anti-wear performance,long service of wet parts.
7.A little hydraulic loss,high efficiency,low power consumption.
8.Reliable shaft sealing without leakage.
PRODUCT DESCRIPTION
INTRODUCTION
SPECIFICATION SHEET
| Type | Capacity (m3/h) | Head(m) | Speed (r/min) | Efficiency (%) | NPSHr (m) | Inlet Diameter (mm) | Outlet Diameter(mm) | Max Diameter of Flowd Particle(mm） | |||||||||
| 200WND | 600~800 | 20~40 | 700~900 | 60~65 | <4.5 | 250 | 200 | 178 | |||||||||
| 200WN | 750~1000 | 40~65 | 700~850 | 70~72 | <4 | 250 | 200 | 180 | |||||||||
| 250WND | 950~1100 | 20~40 | 500~700 | 65~70 | <4 | 300 | 250 | 220 | |||||||||
| 250WN | 1100~1300 | 40~65 | 500~650 | 70~74 | <4 | 350 | 250 | 144 | |||||||||
| 300WND | 1500~1800 | 20~40 | 400~600 | 65~68 | <4 | 350 | 300 | 241 | |||||||||
| 300WN | 1800~2200 | 40~65 | 400~550 | 74~78 | <4 | 450 | 300 | 241 | |||||||||
| 350WN | 2600~3000 | 40~65 | 400~550 | 74~78 | <4.5 | 450 | 350 | 245 | |||||||||
| 400WN | 2800~3200 | 20~40 | 400~550 | 74~78 | <4.5 | 450 | 400 | 250 | |||||||||
| 450WN | 3200~3850 | 40~67 | 350~500 | 76~80 | <4.5 | 600 | 450 | 354 | |||||||||
| 500WND | 3600~4200 | 20~40 | 220~320 | 72~75 | <4.8 | 600 | 500 | 330 | |||||||||
| 500WN | 4500~5500 | 40~65 | 350~450 | 78~80 | <4.8 | 650 | 500 | 250 | |||||||||
| 600WN | 5000~9000 | 55~80 | 280~420 | 81~85 | <6 | 660 | 600 | 220 | |||||||||
| 700WN | 8000~12000 | 60~85 | 280~380 | 83~85 | <6 | 760 | 700 | 280 | |||||||||
| 900WN | 12000~19000 | 50~75 | 280~330 | 85~87 | <6 | 960 | 900 | 320 | |||||||||
| 1000WN | 16000~25000 | 23~76 | 181~290 | 85~87 | <6 | 1200 | 1000 | 350 |
Note: Other parameters are by your requirements
|
|

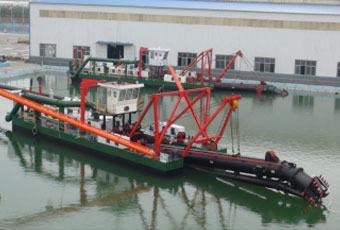

| Cutter Suction Dredger ETG 650 | ||||
| Production (m3/h) | 6000 | |||
| Dredging depth (m) | 18 | |||
| Pipe diameter (mm) | 650 | |||
| cutter Power | 450 | |||
| Total installed power (kw) | 2985 | |||
| Total Weight (Ton) | 420 | |||
| Cutter Suction Dredger ETG 550 | ||||
| Production (m3/h) | 4500 | |||
| Dredging depth (m) | 14 | |||
| Pipe diameter (mm) | 550 | |||
| cutter Power | 200 | |||
| Total installed power (kw) | 1650 | |||
| Total Weight (Ton) | 165 | |||
| Cutter Suction Dredger ETG 450 | ||||
| Production (m3/h) | 3000 | |||
| Dredging depth (m) | 12 | |||
| Pipe diameter (mm) | 450 | |||
| cutter Power | 125 | |||
| Total installed power (kw) | 1120 | |||
| Total Weight (Ton) | 120 | |||
