E-TOUCH discharge hose is be used in dredging projects including dredge waterways, and land reclamation. It can be connected with a steel pipe and HDPE pipe. It is easy to install,abrasion-resistant, bending resistant, longer lifetimes, and safe.
Features:
1. This kind of hose is high pressure resistance and abrasive resistance , and it is with the feature of flexiable and bent,which is popular in dredging work mining.
2. All kinds of sand suction hose are made in suitable materials due to different purpose.
3. Abrasion resistant, weather resistant,and zone resistant.
4. Some customers said the life can be 3 years
PRODUCT DESCRIPTION
SPECIFICATION SHEET
INTRODUCTION
| Construction | Specification | ||||||||||||
| Wear layer | NR/SBR,highly wear resistant | Inner Diameter/ID(mm) | 100~1300 | ||||||||||
| Reinforcement layer | High tensile fabric cord | Length(mm) | 1000~12000 | ||||||||||
| Outer cover | NR/SBR/EPDM aging/abrasion/ tropical resistant | Working Pressure/WP(Bar) | 5~40 | ||||||||||
| Bursting Pressure/BP (Bar) | 15~120 | ||||||||||||
| Construction | Specification | ||||||||||||
| Wear layer | NR/SBR,highly wear resistant | Inner Diameter/ID(mm) | 100~1300 | ||||||||||
| Reinforcement layer | High tensile fabric cord | Length(mm) | 1000~12000 | ||||||||||
| Outer cover | NR/SBR/EPDM aging/abrasion/ tropical resistant | Working Pressure/WP(Bar) | 5~40 | ||||||||||
| Bursting Pressure/BP (Bar) | 15~120 | ||||||||||||
| Wear rings | 40×20mm.HB450 | ||||||||||||
| Material | Cr40 | ||||||||||||
| Construction | Specification | ||||||||||||
| Wear layer | NR/SBR,highly wear resistant | Inner Diameter/ID(mm) | 100~1300 | ||||||||||
| Reinforcement layer | High tensile fabric cord | Length(mm) | 1000~12000 | ||||||||||
| Outer cover | NR/SBR/EPDM aging/abrasion/ tropical resistant | Working Pressure/WP(Bar) | 5~30 | ||||||||||
| Bursting Pressure/BP (Bar) | 15~90 | ||||||||||||
| Construction | Specification | ||||||||||||
| Wear layer | NR/SBR,highly wear resistant | Inner Diameter/ID(mm) | 300~1200 | ||||||||||
| Reinforcement layer | High tensile fabric cord | Length(mm) | 300~1000 | ||||||||||
| Outer cover | NR/SBR/EPDM aging/abrasion/ tropical resistant | Working Pressure/WP(Bar) | 5~30 | ||||||||||
| Bursting Pressure/BP (Bar) | 15~90 | ||||||||||||
| Construction | Specification | ||||||||||||
| Wear layer | NR/SBR,highly wear resistant | Inner Diameter/ID(mm) | 100~1300 | ||||||||||
| Reinforcement layer | High tensile fabric cord | Length(mm) | 1000~6000 | ||||||||||
| Outer cover | NR/SBR/EPDM aging/abrasion/ tropical resistant | Working Pressure/WP(Bar) | 1~1 | ||||||||||
| Construction | Specification | ||||||||||||
| Wear layer | NR/SBR,highly wear resistant | Inner Diameter/ID(mm) | 100~1300 | ||||||||||
| Reinforcement layer | High tensile fabric cord | Length(mm) | 1000~6000 | ||||||||||
| Outer cover | NR/SBR/EPDM aging/abrasion/ tropical resistant | Working Pressure/WP(Bar) | 1~1 | ||||||||||
Discharge hose with steel flange
Discharge hose with sandwich flange
Compensator
Suction hose with steel flange
Suction hose with sandwich flange
Armoed Discharge hose
DISCHARGE HOSE
SUCTION HOSE
|
|

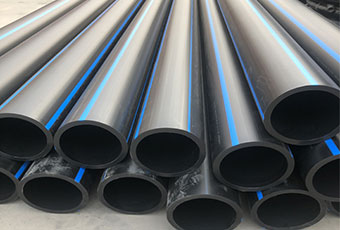

Professional production equipment and technical process.The product produced has good flexibility,high impact strength,corrosion resistance,strong shock resistance,good wear resistance and good crack resistance.

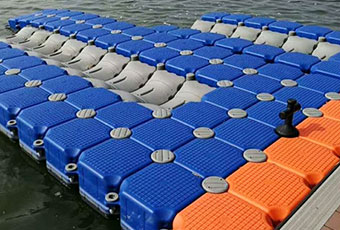

This product adopts HMWHDPE environmental protection material,the whole cube is formed in seam-less, no water seepage and water storage problems,which also adds anti-ultraviolet material has enough flexible and hardness,can withstand environmental changes and low temperature.

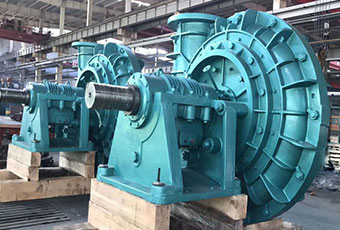

WN series of dredging pump,which is designed and researched by our company--E-Touch is one new type dredging pump,making full use of advanced CAD software,aiming to China’s river,lake and sea situation,they are in great need to dredge and fill hydraulically.
