The dredger reamer teeth, rake teeth, adaptors and accessories are our main products. We have rich experience in design and manufacturing. The alloy steel material after the heat treatment has the characteristics of high hardness and toughness, outstanding wear resistance, especially suitable for the strong wearing working conditions. We have full set of QC system during production and the complete inspection facilities to ensure the best quality of each product.

E-TOUCH is constantly improving and expanding the latest tooth systems. It provides a wide range of tooth systems for any application in dredging. Whether it is for a cutter head, cutting wheel, draghead or for sand, clay or rock, we have the solution for any size dredger. All tooth systems are specially designed for dredging.

PRODUCT DESCRIPTION

SPECIFICATION SHEET

CB Series

DS Series

T Series

$ Get Quote

F Type

■ 10-CB Serial

■ 20-CB Serial

■ 30-CB Serial

AL Adapter

ACR Adapter

F2 Type

AL Adapter

F2 Type

ACR Adapter

N Type

AWN2 RING SUPPORT

P Type

Wear block

F3 Type

ACR Adapter

N Type

AWN2 Ring Support

P Type

AWN3 Trailing suction seat

WEAR PLATE

N Type

P Type

No.	P/No.	Length（mm）	Width (mm)	Weight （Kg）	Remark
1	10-CB-F	198	90	2.9	flared chisel
2	10-CB-P	198	20	2.2	narrow chisel
3	10-CB-N	193	12	2.0	pick point
4	10-LP x3	54.5	9	0.1	locking pin

No.	P/No.	Length (mm)	Weight （Kg）	Remark
5	10-CB-AL	204	2.6	AL Adapter
6	10-CB-ACR	200	3.0	ACR Adapter

No.	P/No.	Length（mm）	Width (mm)	Weight （Kg）	Remark
1	20-CB-F2	295	118	8.4	flared chisel
2	20-CB-F3	295	118	8.4	flared chisel
3	20-CB-N	295	32	6.2	narrow chisel
4	20-CB-P	300	12	6.9	pick point
5	20-LP x3	82	36	0.2	locking pin

No.	P/No.	Length (mm)	Weight （Kg）	Remark
6	20-CB-AL2	296	7.9	AL2 Adapter
7	20-CB-ACR	268	8.2	ACR Adapter
8	20-CB-AWN2	165	6.3	AWN2 Ring Support
9	20-CB-AWN3	165	6.0	AWN3 Trailing Suction Seat
10	20-CB-AE	107	1.2	Wear Plate

No.	P/No.	Length（mm）	Width (mm)	Weight （Kg）	Remark
1	30-CB-F2	320	142	12.7	Flared chisel
2	30-CB-N	320	48	9.7	Narrow chisel
3	30-CB-P	325	18	9.0	Pick point
4	30-LP x2	112	32	0.2	Locking pin

No.	P/No.	Length (mm)	Weight （Kg）	Remark
5	30-CB-ACR	296	17.8	ACR Adapter
6	30-CB-AWN2	192	10.0	AWN2 Ring Support
7	30-CB-AE	156	3.4	Wear Plate

Details about Cutter teeth

The cutter teeth design and manufactures it in its unique composite material and wear resisting material. * Various types of teeth like wide chisel, narrow chisel and pick point * Various types of adapters like ACR adapter, adapter weld on nose and adapter leg * Wide chisels are used for peat, sand and soft clay * Narrow chisels are applied in packed sand and firm clay * Teeth with pick points are used for rock * Special mounting geometry * The unique male teeth design and easy locking system. * The unique alloy, in which a composite insert is placed to reinforce the working tip of the tooth. * Self sharpening of the tooth, better ground penetration, increased production. * Increased lifetime ,decreased frequency and duration of maintenance stops, increased cum dredged per day. * Accept for any other custom-made teeth as clinets' samples,drawings or requirements.

Flare Type Flat teeth

■ 28DS Serial

■ 38DS Serial

■ 48DS Serial

■ 52D Serial

■ 58D Serial

■ 4G Serial

■ 5G Serial

AL Adapter

Flare Type Flat teeth

Pick Type Sharp teeth

Flare Type Flat teeth

Arm seat

Chisel Type Narrow teeth

Ring seat

Pick Type Sharp teeth

Chisel Type Narrow teeth

Seat

Pick Type Sharp teeth

Chisel Type Narrow teeth

Pick Type Sharp teeth

Pick Type Ordinary Sharp teeth

Pick Type Rock teeth

No.	P/No.	Length（mm）	Width (mm)	Weight （Kg）	Remark
1	28DS13AF	296	114	7.2	Flat teeth
2	28DS13AC	296	39	5.2	Narrow teeth
3	28DS12AP	270	9	4.8	Sharp teeth

No.	P/No.	Length（mm）	Width (mm)	Weight （Kg）	Remark
1	38DS14AF	319	108	10.0	Flat teeth
2	38DS14AC	319	44	8.5	Narrow teeth
3	38DS13AP2	290	13	7.2	Ordinary Sharp teeth
4	38DS13AP	290	13	7.5	Rock teeth

No.	P/No.			Width (mm)		Weight （Kg）		Remark
5	8848-38DS			320		24.0		Right-hand Adapter

No.	P/No.	Length（mm）	Width (mm)	Weight （Kg）	Remark
1	48DS15AF	346	138	13.5	Flat teeth
2	48DS16AC	378	50	13.5	Narrow teeth
3	48DS14AP	300	13	10.5	Sharp teeth

No.	P/No.	Length（mm）	Width (mm)	Weight （Kg）	Remark
1	52D16-10	336	24	15.2	Sharp teeth
2	640D52D	452	163	37.8

No.	P/No.		Length（mm）		Width (mm)		Weight （Kg）		Remark
1	58D16-10		354		24		17.7		Sharp teeth

No.	P/No.	Length（mm）	Width (mm)	Weight （Kg）	Remark
1	4GAF2	399	132	15.2	Flat teeth
2	4GAC2	393	68		Narrow teeth
3	4GAP2	368	27	11.8	Sharp teeth

No.	P/No.	Length（mm）	Width (mm)	Weight （Kg）	Remark
1	5GAF2				Flat teeth
2	5GAC2				Narrow teeth
3	5GAP2	401	32	18.5	Sharp teeth

No.	P/No.	Width (mm)	Weight （Kg）	Remark
4	8820-4G	318	36.0	Right-hand Adapter
5	WN4G	156	20.2	Ring seat

No.	P/No.	Length（mm）	Width (mm)	Weight （Kg）	Remark
4	642D5G	422	163	36.9
5	WN5G	252	168	27.0


F Type

T2.01 Type

■ TSC04 Serial

■ T2 Serial

■ T4 Serial

■ T6 Serial

T2.31 arm base

T2.36 ring seat

T2.50 Pin

T4.01 Type

T4.31 arm base

T6.01 Type

T6.02 Type

T6.03 Type

T6.04 Type

T6.05 Type

T4.02 Type

T4.33 arm base

T4.36 ring seat

T4.50 Pin

T4.03 Type

T4.04 Type

N Type

T2.02 Type

T2.03 Type

No.	P/No.	Length（mm）	Width (mm)	Weight （Kg）	Remark
1	TSC04.00	200	104	2.55	Flat teeth
2	TSC04.01	209	42	2.45	Narrow teeth

No.	P/No.	Length（mm）	Width (mm)	Weight （Kg）	Remark
1	T2.01	315	135	8.7	Flat teeth
2	T2.02	310	65	7.8	Narrow teeth
3	T2.03	245	25	6.1	Sharp teeth

No.	P/No.	Width (mm)	Weight （Kg）	Remark
4	T2.31	310	28.0	T2.31 Wing Adapter
5	T2.36	240	21.0	T2.36 Ring Adapter
6	T2.50	90	0.3	销勾

No.	P/No.	Length（mm）	Width (mm)	Weight （Kg）	Remark
1	T4.01	350	145	12.8	Flat teeth
2	T4.02-60	345	60	11.5	Narrow teeth,齿尖宽60mm
3	T4.02-80	345	80	11.5	Narrow teeth,齿尖宽80mm
4	T4.03	280	31	9.7	Sharp teeth
5	T4.04	280	25	8.9	Sharp teeth

No.	P/No.	Width (mm)	Weight （Kg）	Remark
6	T4.31	290	48.6	T4.31 Tube Adapter
7	T4.33	310	35.6	T4.33 Wing Adapter
8	T4.36	275	33.0	T4.36 Ring Adapter
9	T4.50	105	0.4	Pin hook

No.	P/No.	Length（mm）	Width (mm)	Weight （Kg）	Remark
1	T6.01	400	160	17.6	Flat teeth
2	T6.02	400	70	15.3	Narrow teeth
3	T6.03	335	40	15.8	Sharp teeth
4	T6.04	335	30	14.3	Sharp teeth
5	T6.05	335	20	14.5	Sharp teeth

The cutter teeth design and manufactures it in its unique composite material and wear resisting material. * Various types of teeth like wide chisel, narrow chisel and pick poin * Various types of adapters like ACR adapter, adapter weld on nose and adapter leg * Wide chisels are used for peat, sand and soft clay * Narrow chisels are applied in packed sand and firm clay * Teeth with pick points are used for rock * Special mounting geometry * The unique male teeth design and easy locking system. * The unique alloy, in which a composite insert is placed to reinforce the working tip of the tooth.

Product Type

Your name

Your Email

Company

Your message

Submit

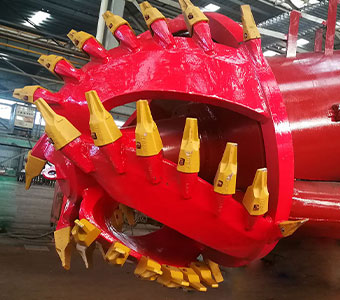

E-TOUCH developing cutterheads for decades based on its practical experience with numerous types of soils and dredging vessels. The company’s modern cutter technology is driven by its fundamental knowledge of excavation, slurry creation and wear resistance, aided by 3D solid modelling and powerful computer analysis. The combination of these factors is the unique basis for offering the best cutterheads in the world

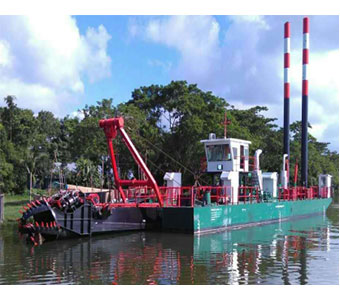

Cutter Suction Dredger ETG 550
Production (m3/h)			4500
Dredging depth (m)			14
Pipe diameter (mm)			550
cutter Power			200
Total installed power (kw)			1650
Total Weight (Ton)			165

WN series of dredging pump,which is designed and researched by our company--E-Touch is one new type dredging pump,making full use of advanced CAD software,aiming to China’s river,lake and sea situation,they are in great need to dredge and fill hydraulically.
