ETG 500 PUMP CUTTER SUCTION DREDGER

PRODUCT INTRODUCTION

GENERAL ARRANGEMENT

SPECIFICATION

ETG 500 Pump Cutter Suction Dredger


Sand Production(m3/h)	Dredging depth(m)	Total engine power(kw)	Pipe diameter(mm)



4000	14	1350	500

Length overall					Approx. 36 m
Length over pontoons					26.0m
Breadth					7.5m
Depth					2.2m
Inner Dia. of suction / discharging pipe					550/500
Max. dredging depth					14m
Swing width with 35ºswing each side					Approx. 39m

Model					HRCS120-25-50
Inner Dia. of inlet / outlet					550mm/450mm
Shaft power					800kw

Manufacturer					WEICHAI / CUMMINS/HND
Main Engine Continuous service rating					Approx. 950KW
Auxiliary Engine					Approx. 450KW
Harbor Genset					50KW
Total specific fuel consumption					Approx. 160L/h

Type					Cutter crown
Diameter					1500mm
Power at shaft					Approx. 170KW

Ladder hoisting winch					1 set 10T
Swing winch					2 sets 8T
Anchoring winch					2 sets 6T

Diameter					630mm
Weight					6500kg
Hoisting cylinder rod					150mm
Spud carriage range					2500mm

20inch 4000m3/h Hydraulic Cutter Suction Dredger

Cutter Suction Dredger is self-propelled or non self-propelled, portable cutter suction dredger. Hull can be dismantled and re-assemble easily with box structure . equipped with horizontal shifting devices, cutter ladder lifting devices, spud devices,deck crane and so on. Widely used in sand-excavating,river dredging, desilting,reclamation for channels and land,port construction, etc.

Low cost per cubic meter. The design of the hydraulic system focuses on efficiency, which reduces fuel consumption and improves the performance of the dredging system. Diesel direct drive submersible pump makes dredging possible at high mixing density. The dredging pump is made of wear-resistant materials. The body is moderate and focuses on simple, direct control, so training is easy. It can be operated by crew members who are not dedicated to dredgers. The compact design allows rapid deployment and mobilization. It is very easy to tow and maneuver in a narrow area.

DREDGE PUMP

DIMENSIONS

ETG-500 DREDGER

DIESEL ENGINE INSTALATION

CUTTER

WINCHES

SPUDS

Tools: Special tools are supplied for connecting and disconnecting pontoons and the cutter ladder,and for maintenance of the dredge pump and diesel engine. Other features: ⊙standard design,allowing for short delivery times and competitive pricing ⊙spare parts available from stock ⊙fresh-water engine cooling system ⊙dredge pump driven through integrated bearing block,clutch and reduction gearbox ⊙cutter drive accepts temporary overload,resulting in high maximum cutter power ⊙reliable hydraulic system ⊙completely assembled and fully tested afloat before dllivery ⊙dismountable and transportable by road,rail orsea ⊙easy and fast assembly and dismantling ⊙ready for operation on arrival at site ⊙hydraulic ram for ladder hoisting ⊙white iron-wear parts for the dredge pump ⊙one-man operation ⊙wide range of services and optional equipment available(including work boats,boosters and pipelines).

Cutter head

Different type of Cutter Head and Cutter teeth is suitable for different soil type and working conditions. E-TOUCH provides series of Cutter Head for selection.This type of pump can meet dredging ship’s requirements completely and each set of dredging pump has passed the inspection issued by CCS.

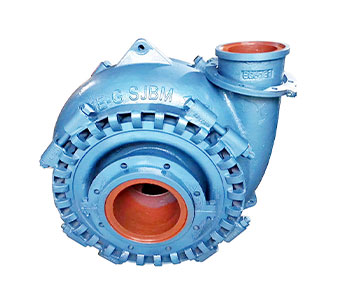

Dredge pump

WN series of dredging pump,which is designed and researched by our company--E-Touch is one new type dredging pump,This series of dredging pump has characteristic features:easy installation,long life service,high efficiency,reliable bearing lining and good economical efficiency.

Hydraulic crane

The hydraulic crane designed by our company for dredger has been praised and trusted by customers for its high reliability and high durability. We are also constantly optimizing its design to adapt to different working conditions.

MAIN FEATURE

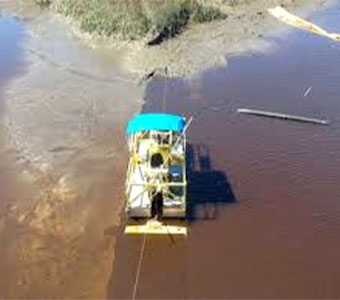

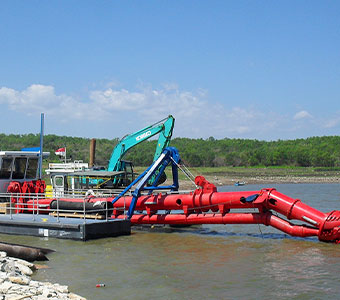

River dredging is necessary to keep warterways open for inland transport ＆to prevent flooding.

Maintenance dredging – removal of sediments from existing riverbeds, channels, etc. in order to maintain an appropriate water depth. As a result, gateways are kept open for safe navigation and flood control.

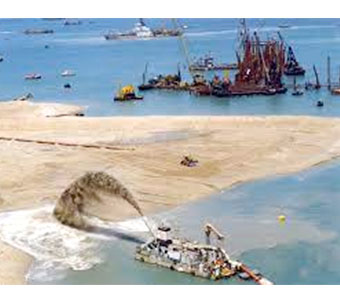

Regular maintenance dredging is required to make sure marinas and harbors provide safe navigation and access at all times, and to avoid disruption of waterway traffic.
