Booster Pump Station
PRODUCT INTRODUCTION
GENERAL ARRANGEMENT
SPECIFICATION
OVERSEAS ENGINEER SUPPORT AND SERVICE
Booster Pump Station
Pipe diameter (mm)Production (m3/h)Discharge Distance (m)Lenght (m) installed power (kw)
450\500\6504000-60002000-300013-151000-1900






GENERAL DIMENSIONS
Pipe diameter450mm
Production4000 m³/h
Total lengthApprox.9m
Total installed power746KW
DREDGING INSTALLATION
Dredge pumpETG110-4540
Impeller diameter1100mm,4   double
curved vanes
ENGINE INSTALLATION
Dredge pump dieselCUMMINS
Max power rating734 kW @ 1,800 rpm



GENERAL DIMENSIONS
Pipe diameter500mm
Production4000 m³/h
Total lengthApprox. 9m
Total installed power1007KW
DREDGING INSTALLATION
Dredge pumpETG132-52-45
Impeller diameter1320 mm, 3 double
curved vanes
ENGINE INSTALLATION
Dredge pump dieselCUMMINS
Max power rating1007 kW @ 1,800 rpm




GENERAL DIMENSIONS
Pipe diameter650mm
Production6000 m³/h
Total lengthApprox. 13m
Total installed power1864KW
DREDGING INSTALLATION
Dredge pumpETG147-65-60
Impeller diameter1470 mm, 3 double
curved vanes
ENGINE INSTALLATION
Dredge pump dieselCUMMINS
Max power rating1864 kW @ 1,900 rpm


CSD450\500\650 Dredger Booster Pump Station
1. The booster pump stations are used to increase the pumping distance for any given dredge. At the same time, booster pumps can also be used to increase production on medium to long distance pumping assignments.  The dredge pump allows the main dredge pump to operate at high percent solids without fear of running out of horsepower.  2. In certain instances, booster pump stations may also take some of the load off the dredge pump and engine in the dredge itself. This helps prevent excessive wear and tear on the main dredge pump and engine.  3. Our booster pump stations are designed and built as self-contained units for use with any dredge. The booster pump , gearbox , engines with necessary accessories will be mounted on the steel structure foundation. The pump will set at outside while the gearbox , engines and other accessories will be set under the steel container shade. A separate fuel tank will be provide for each booster.  the Dredge pump is made under technogy of IHC HRMD 121-26-60 Model. Also will be re-optimized on the working effiency.
Booster Pump 450
Booster Pump 500
Booster Pump 650
We believe in building a relationship with our customers and therefore Shandong E-Touch offers global services. Our service team consists of highly-skilled and experienced professionals and dredging specialists who can provides the best desired dredgers and integrated dredging solutions according to the customer's specific project. We also provide technical supports such as operational skills training, repair technology teaching,This sustainable approach helps customers reach the all-important goals of reduced operational costs and improved dredger/ship uptime. Our service includes: 1)Dredger/Ships assembling & commissioning 2)Dredger /Ships Operation & Training 3)Dredger / Ships Maintenance Team

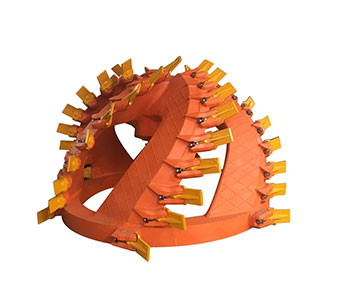

Cutter head
ABUIABACGAAgx4mXvAYozIuXowUw1AI4rAI


Different type of Cutter Head and Cutter teeth is suitable for different soil type and working conditions.     E-TOUCH provides series of Cutter Head for selection.This type of pump can meet dredging ship’s requirements completely and each set of dredging pump has passed the inspection issued by CCS.

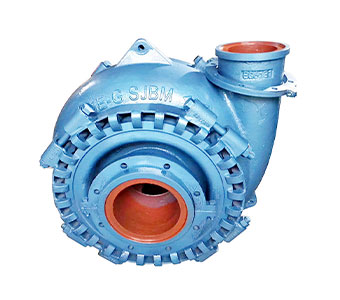

Dredge pump
ABUIABACGAAg1omXvAYo8KTVjgMw1AI4rAI


WN series of dredging pump,which is designed and researched by our company--E-Touch is one new type dredging pump,This series of dredging pump has characteristic features:easy installation,long life service,high efficiency,reliable bearing lining and good economical efficiency.

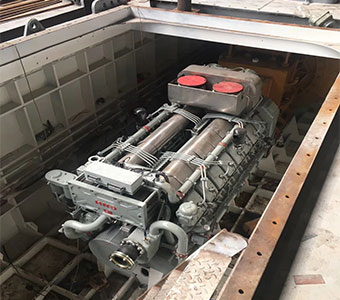

Powerful engine
ABUIABACGAAg5YmXvAYokNmYqwYw1AI4rAI


Dredging plays a vital role in the marine industry, allowing cargo and passenger ships to travel through unobstructed waterways. It’s a tough job, and dredging vessels need engines that deliver reliable performance, high fuel efficiency and best-in-class powe.

MAIN FEATURE
ABUIABACGAAg9omXvAYo7Kir2wIw1AI4rAI

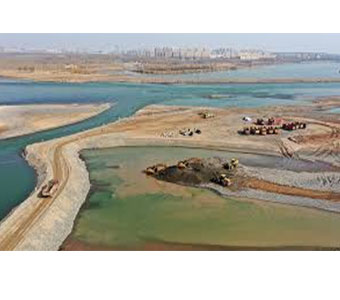

River dredging is necessary to keep warterways open for inland transport ＆to prevent flooding.


ABUIABACGAAghoqXvAYogIj5gwcw1AI4rAI

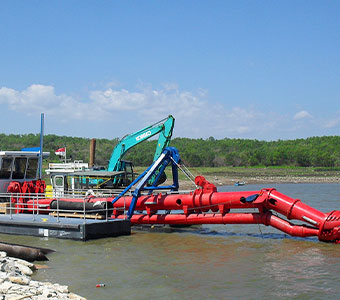

Maintenance dredging –   removal of sediments from existing riverbeds, channels, etc. in order to maintain an appropriate water depth. As a result, gateways are kept open for safe navigation and flood control..

ABUIABACGAAgl4qXvAYokeiX8wcw1AI4rAI


Regular maintenance dredging is required to make sure marinas and harbors provide safe navigation and access at all times, and to avoid disruption of waterway traffic.
