500HP Dredge Work Boat | |
Total Dimension ( L*B*D) | Generator |
20.0m*7.0m*2.6m | Model :X2105BCF Power :15kw |
| Total Dimension ( L*B*D) | 20.0m*7.0m*2.6m | ||||||||||
| Steel thickness ( deck*side*bottom) | 12mm*10mm*12mm (CCSB) | ||||||||||
| Load draught | 1.8m | ||||||||||
| Displacement | 260T | ||||||||||
| Diesel oil capacity | 50 cubic meter | ||||||||||
| Fresh water capacity | 5T | ||||||||||
| Deck crane lifting weight | 3.0T | ||||||||||
| Main engine | 500HP @1800rpm, Cummins | ||||||||||
| Engine Model | 6CT8.3-GM175 | ||||||||||
| Quantity of engine | 2 sets | ||||||||||
| Quantity of gearbox | 2 sets | ||||||||||
| Engine oil consumption | 65L/KW.H | ||||||||||
| Motor-driven oil pump | model :2CY-8/0.33 water flow: 12m³/h head : 3.3m power: 4kw | ||||||||||
| Motor-driven ballast pump | water flow: 20m³/h head : 15m power: 2.2kw | ||||||||||
| Hydraulic windless tension | 70 KN | ||||||||||
| Windless hydraulic pump | Model: 35VQ Power:15 kw | ||||||||||
| Windless controlling | Manual & hydraulic | ||||||||||
| Generator | Model :X2105BCF Power :15kw | ||||||||||
| Bed No & Kitchen | 2 pecs and 1 pes | ||||||||||
| Air condition | 2 pecs | ||||||||||
| Toilet | 1 pecs | ||||||||||
| Steering engine control | Double hydraulic steering engine | ||||||||||
| Diameter airscrew | 1200mm | ||||||||||
| Pilot speed | 15km/h | ||||||||||
| Anchor weight | 65 kg |

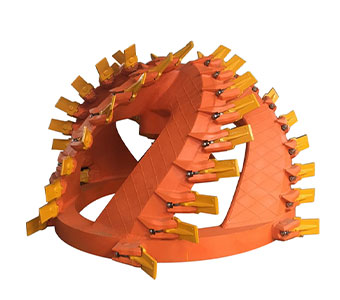

Different type of Cutter Head and Cutter teeth is suitable for different soil type and working conditions. E-TOUCH provides series of Cutter Head for selection.This type of pump can meet dredging ship’s requirements completely and each set of dredging pump has passed the inspection issued by CCS.
River dredging is necessary to keep warterways open for inland transport ＆to prevent flooding.
E-TOUCH design a more user-friendly control system for the dredger's working scene and different use modes. We do everything possible to improve man-machine compatibility to improve work efficiency.
Maintenance dredging – removal of sediments from existing riverbeds, channels, etc. in order to maintain an appropriate water depth. As a result, gateways are kept open for safe navigation and flood control.

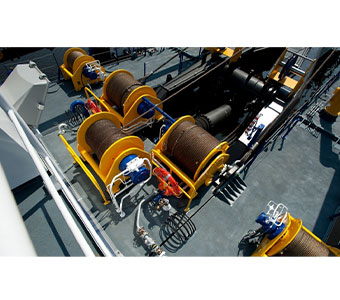

Because of its special operation mode, the winch has become one of the most critical parts in the operation of cutter suction dredger. E-TOUCH winches are popular in the international market for their high reliability, long service life and durability.

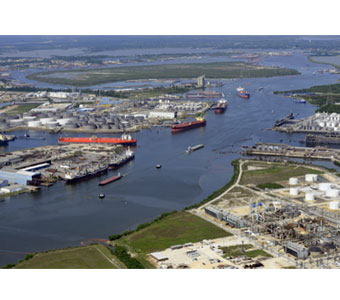

Regular maintenance dredging is required to make sure marinas and harbors provide safe navigation and access at all times, and to avoid disruption of waterway traffic.
|
|
